100W 150W 200W Portable Handheld Pulse Fiber Laser Cleaning Machine
(Model:PE-100Z)
Machine Introduction
This handheld laser cleaner features a compact and lightweight design that offers both portability and efficiency, making it ideal for a wide range of applications, including tight spaces, outdoor environments, and high-altitude work. Its cleaning head is small but powerful, capable of meeting a variety of cleaning needs with exceptional performance.
Product Features
1. It can be carried by hand or on the back, the design fully conforms to the principles of ergonomics.
2. Equipped with an intelligent operating system, it provides a variety of working modes for users to flexibly choose.
3. Precision cleaning function, which can selectively clean specific locations and sizes.
4. The laser cleaning system is stable and reliable, and the subsequent maintenance and maintenance costs are relatively low.
5. The operation process is simple and fast, and it can be started by just turning on the power, with low learning costs.
6. Made of metal material, combined with a double safety protection mechanism to ensure that the product quality is stable and durable.
7. Comprehensive functions and fully equipped accessories are designed to improve operational safety and save physical strength.
8. No chemical cleaning fluid or any consumables are required, truly realizing a safe and environmentally friendly cleaning method.
Application:
Aerospace, automobile manufacturing, electronics and semiconductors, cultural relics protection, food processing, etc.

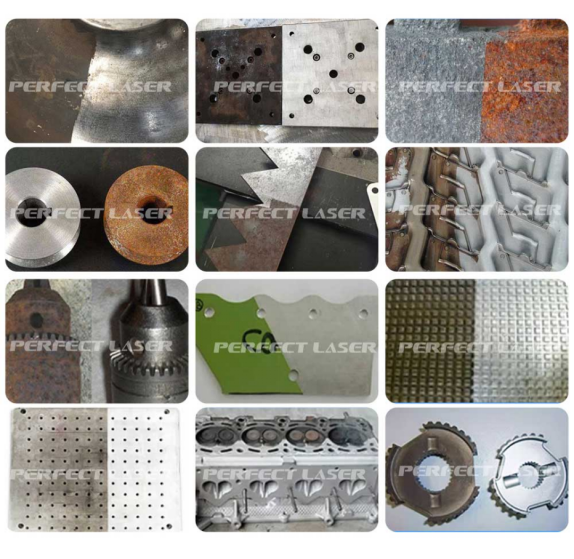

Metal products, stone products,rubber molds
Technical Data
| Product Name | 100W 150W 200W Portable Handheld Pulse Fiber Laser Cleaning Machine |
| Model | PE-100Z |
| Laser Type | Fiber Laser |
| Laser Power | 100~200W |
| Operating Mode | Pulsed |
| Center Wavelength | 1064±3 nm |
| Laser Pulse Width Range | 150~340ns |
| Laser Frequency Range | 20~200 kHz |
| Power Adjustment Range | 10~100% |
| Scanning Speed | ≤30000mm/s |
| Scanning Range | 100*100 mm (default) |
| Field Lens Specification | F=210 mm (customizable - 7 specifications available) |
| Fiber Length | 3m (customizable) |
| Cleaning Head Weight | 0.78 kg |
| Cooling Method | Air-cooled |
| Cabinet Dimensions | 420 x 190 x 280 mm / 390 x 260 x 280 mm |
| Total Machine Weight | 15~22 kg |
| Total Machine Rated Power | <900W |
| Power Supply Voltage | 1∮110～240 VAC |
| Power Supply Frequency | 50/60 Hz |
| Auxiliary Gas | Interface reserved (optional) - Compressed Air (oil and water filtration required) |
| Air Pressure | 0.3~0.8MPa |
| Noise Db | <60A |
| Operating Temperature | 5~40℃ |
| Equipment Standards | IS09001, CE-Intertek |
| Placement Environment | Free from strong vibrations and impacts, level and balanced |
